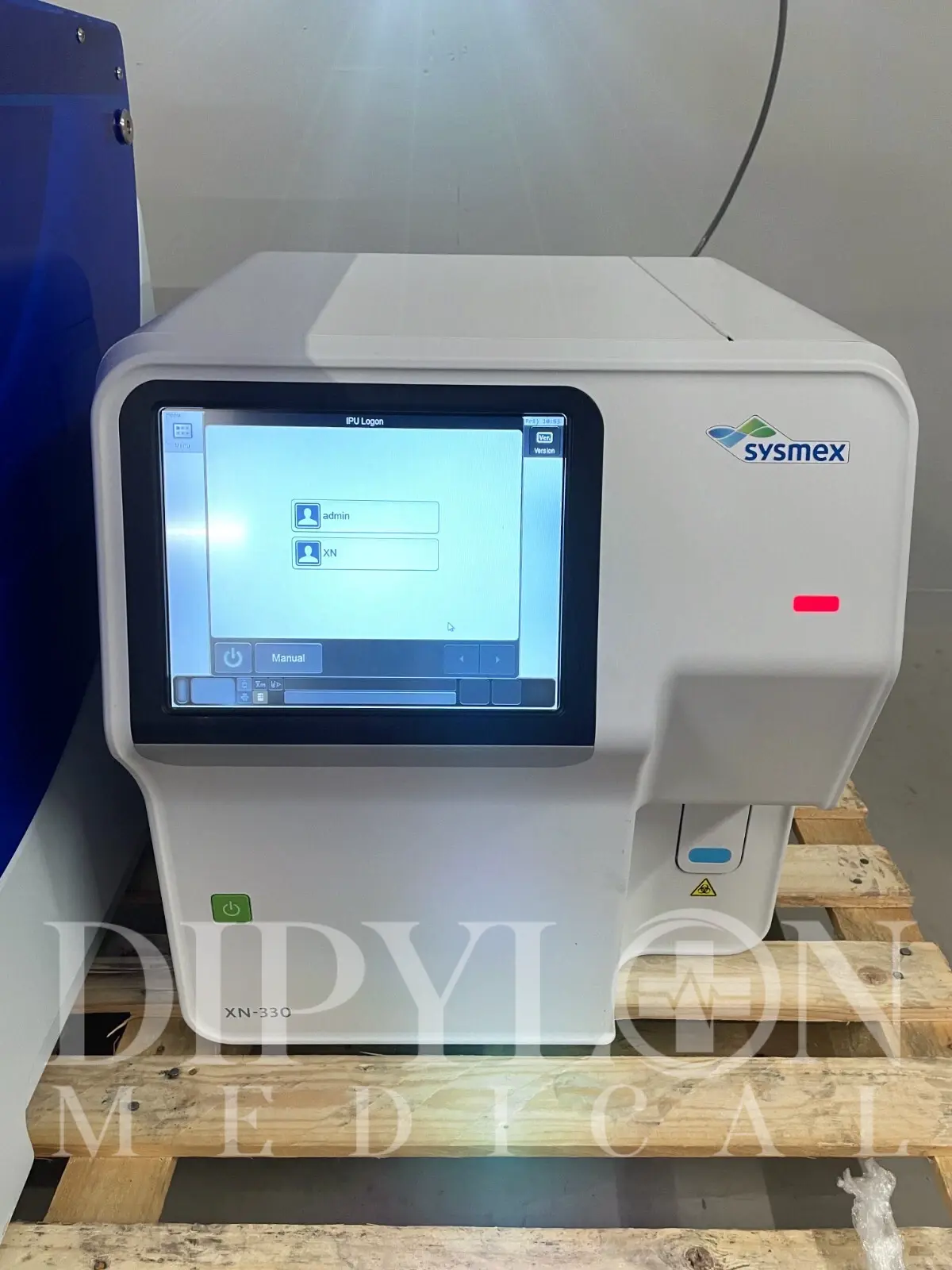

Sysmex XN-330 Automated Hematology Analyzer

The XN-330 offers single-sample analysis in open mode. It has a fully integrated IPU (information-processing unit), including a color LCD touchscreen, so you do not need a separate computer to operate the analyzer. It incorporates the proven Sysmex technologies of fluorescence flow cytometry, hydrodynamic focusing, and our cyanide-free SLS method for determining hemoglobin.

Features and Benefits

• Compact 6-part differential hematology analyzer
• Throughput of 60 samples per hour
• Single-sample analysis in open mode
• Fully integrated IPU including LCD color touchscreen
• Only 25 µL aspiration volume in whole blood mode
• Best-in-class diagnostics tailored to small and mid-sized laboratories

Simple, smart, compact design.

The XN-330 is a compact, open-tube sampling analyzer, perfect for your CLIA moderately complex lab. With a six-part differential on every sample and a common user interface, the XN-330 provides your small physician’s office lab or clinic with the same powerful, intuitive XN technology of the larger XN-Series™.

Not all products and services are registered or sold in all markets.

Sysmex XN-L automated hematology analyzers offer expanded clinical value

Using fluorescent flow cytometry and advanced algorithms, the XN-L generates an automated 6-part differential which includes Immature Granulocyte (IG) enumeration. The IG count reflects metamyelocytes, myelocytes and promyelocytes in the sample, requires no additional preparation or reagents and may help reduce the number of manual differentials being performed in your lab. The available Low WBC mode extends the WBC and differential counting times, providing accurate and reproducible results that may increase workflow efficiency.

Product Specifications

Brief Product Description	XN-Series™ technology in a smaller footprint for the lower volume laboratory. Open tube sampling.
Principles and Technology	Fluorescent Flow Cytometry (WBC DIFF/RET), direct current Impedance method with hydrodynamic focusing (RBC/PLT), Cyanide-free SLS method (HGB)
Channels
Parameters	WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%
Throughput	Up to 60 samples/hour
Sample Volume	Whole Blood Mode: 25 µL Pre-dilute Mode: 70 µL
Linearity	WBC: 0.00 – 440.00 X 10³/µL RBC: 0.00 – 8.60 X 10⁶/µL PLT: 0 – 5,000 X 10³/µL
Quality Control	XN-L CHECK™ or XN CHECK™
User Maintenance	Daily shutdownWeekly cleaning sequence with CELLCLEANTM AUTO
Dimensions and Weight	17.72” (W) X 18.11” (D) X 20.08” (H); 77.16 LBS

Reference

• Brochure
